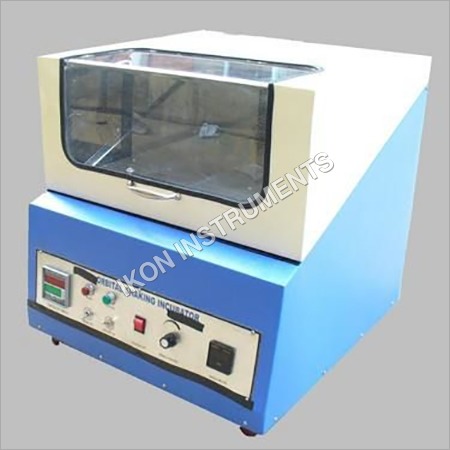

Commercial Orbital Shaking Incubator

Name: Commercial Orbital Shaking Incubator
Brand: IKON INSTRUMENTS
Price: 110000.00 INR
Availability: InStock

Get a Price/Quote

MOQ : 1 Piece

Commercial Orbital Shaking Incubator Specification

Phase
Single Phase

Frequency
50 Hz Hertz (HZ)

Power Source
Electric

Noise Level
Low db

Operating Temperature
5C to 60C Celsius (oC)

Function Type
Incubation & Shaking

Feeding System
Manual

Features
Digital Timer, Safety Thermostat, Adjustable Speed

Speed Mode
Variable

Machine Type
Shaking Incubator

Heating Method
Air Circulation

Product Type
Laboratory Incubator

General Use
Cell Culture, Microbiological Applications

Type
Orbital Shaking Incubator

Capacity
150 Litre Ltr

Weight (kg)
Approx. 70 kg Kilograms (kg)

Product Shape
Rectangular

Computerized
No

Automatic
Yes

Voltage
220V Volt (v)

Power
600W Watt (w)

Dimension (L*W*H)
600 x 600 x 750 mm Millimeter (mm)

Color
White / Blue

Door Type
Single Front Opening with Glass Window

Shaking Speed Range
40 250 RPM

Temperature Accuracy
0.5C

Timer Range
Up to 99 Hours

Trays Capacity
Can accommodate multiple flasks (250/500/1000 ml)

Shelves
1 Removable Tray

Inner Chamber
Mirror Polished Stainless Steel

Heating Element
Nichrome Wire Heater

Safety Features
Over Temperature Alarm, Door Sensor

Outer Body Material
Powder Coated Mild Steel

Commercial Orbital Shaking Incubator Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Day

Delivery Time
1 Days

About Commercial Orbital Shaking Incubator

Falling into the category of topmost manufacturers and suppliers, we are offering to our clients a wide series of Orbital Shaking Incubator. The shakers are precisely manufactured by employing advanced technology and using quality assured material. Especially made for mixing biological liquids, these incubators are also used for cultivation of biological liquids. Moreover, we make available the advanced gamut of Orbital Shaking Incubator at most affordable rates.

Features:

Compact in size
Automatically operated
Excellent shaking speed

Further Details:

ORBITAL SHAKING INCUBATOR "IKON" MAKE CAT. NO. IK-184

Body made of thick S.steel sheet (SS-304 GRADE) Top lid is made up of transparent see through plexi glass. A Variable speed Rotary shaker plateform is fitted with DC DRIVEN MOTOR. for continuous operation unit are also fitted with DIGITAL RPM/SPEED INDICATOR. The shaking platform can accomodate 16 flasks of 250 /500 ml. is provided at the base of incubator so as to shake erlynmeyer flasks. The variable speed motor is fitted outside of the inner chamber, at the base. The compolete unit is mounted on a sturdy angle iron frame. Temperature is controlled by DIGITAL TEMPERATURE INDICATOR CUM CONTROLLER from ambient to 70⁰C.The unit is fitted with air circulation fan for temperature uniformity. To work on 220/230 volts AC Supply.

plateform size 30x30 cm cap. 110 lit. for 9 flask of 250 ml.

plateform size 55x55 cm cap. 200 lit. for 25 flasks of 250/500 ml.

Superior Temperature Accuracy and Uniform Heating

Utilizing a nichrome wire heater and air circulation mechanism, this incubator ensures consistent temperature distribution with an accuracy of 0.5C. Uniform heating is crucial for sensitive biological protocols, offering reliable incubation and shaking conditions for optimal growth and experimentation.

Versatile Shaking and Capacity Features

The shaking platform supports a speed range of 40250 RPM, suitable for gentle mixing or vigorous agitation. The removable tray accommodates multiple flask sizes250, 500, or 1000 mlproviding flexibility for varying experiment requirements. The spacious 150-litre capacity allows multiple samples to be processed simultaneously.

User-Friendly Operation and Safety

The digital PID control system simplifies parameter adjustments, with process feedback on the bright LED display. Safety features such as door sensors and over-temperature alarms enhance equipment security and experimental integrity, ensuring peace of mind for busy laboratories.

FAQs of Orbital Shaking Incubator:

Q: How does the Orbital Shaking Incubator maintain uniform temperature during operation?

A: The incubator uses a nichrome wire heating element combined with air circulation to ensure even temperature distribution throughout the mirror-polished stainless steel chamber, maintaining an accuracy of 0.5C for consistent experimental conditions.

Q: What types of laboratory applications is this incubator suitable for?

A: This shaking incubator is ideal for cell culture, microbiology applications, and general laboratory mixing or incubation needs where both temperature control and orbital shaking are required.

Q: When should I use the variable speed function, and what range does it offer?

A: The variable speed function allows you to adjust the shaking rate between 40 and 250 RPM. Use lower speeds for gentle mixing of sensitive samples and higher speeds for increased oxygenation or thorough mixing, depending on your protocol needs.

Q: Where should I install the Orbital Shaking Incubator for optimal use?

A: Designed as a benchtop unit, the incubator should be placed on a sturdy, level laboratory bench near a 220V single-phase power supply for safe and convenient operation.

Q: What steps are involved in setting up and operating the incubator?

A: Place your flasks on the removable tray, set desired parameters on the PID digital control (temperature, time, speed), ensure the glass door is securely closed, and monitor progress via the LED display. Safety features automatically engage, and the timer can be set up to 99 hours.

Q: How can users benefit from the safety features included in this incubator?

A: Over-temperature alarms and a door sensor safeguard your samples and equipment by alerting you to abnormal conditions, reducing the risk of sample loss or equipment malfunction.
